Norwegian Foundry

Entire foundry currently up for auction in Jorpeland in Norway. In short; Two arc furnaces, one argon oxygen decarbonizer,
one teeming ladle pre-heater, ventilation system, compressors, hydraulic press, 2 large transformers, 2 emulsion pump
stations, large overhead cranes, all necessary accessories for casting ingots and lots more. Over 1.000 metric tones of
steel

TEEMING LADLE PRE-HEATER:
-Burns Propan and Oxygen
-Pre heat teeming ladle to 800℃
-Dual burners, twinsystems
-3-phase 230vac powered control system
-Siemens touch Simatic panel interface
-PLC controlled, with external
push-button control panels on burner-side
-Gas and temperature guard
-Includes 2019-year model SCC Screw
compressor
-Includes older Atlas Copco Airlet compressor

TEEMING & TRANSFER LADLES:
-12.5 Tonn teeming ladle
-7 Tonn teeming ladle
-20 Tonn teeming ladle
-10 Tonn teeming ladle
-6 Tonn teeming ladle
-12,5 tonn transfer ladle
-And more. Refer to PDF attachments

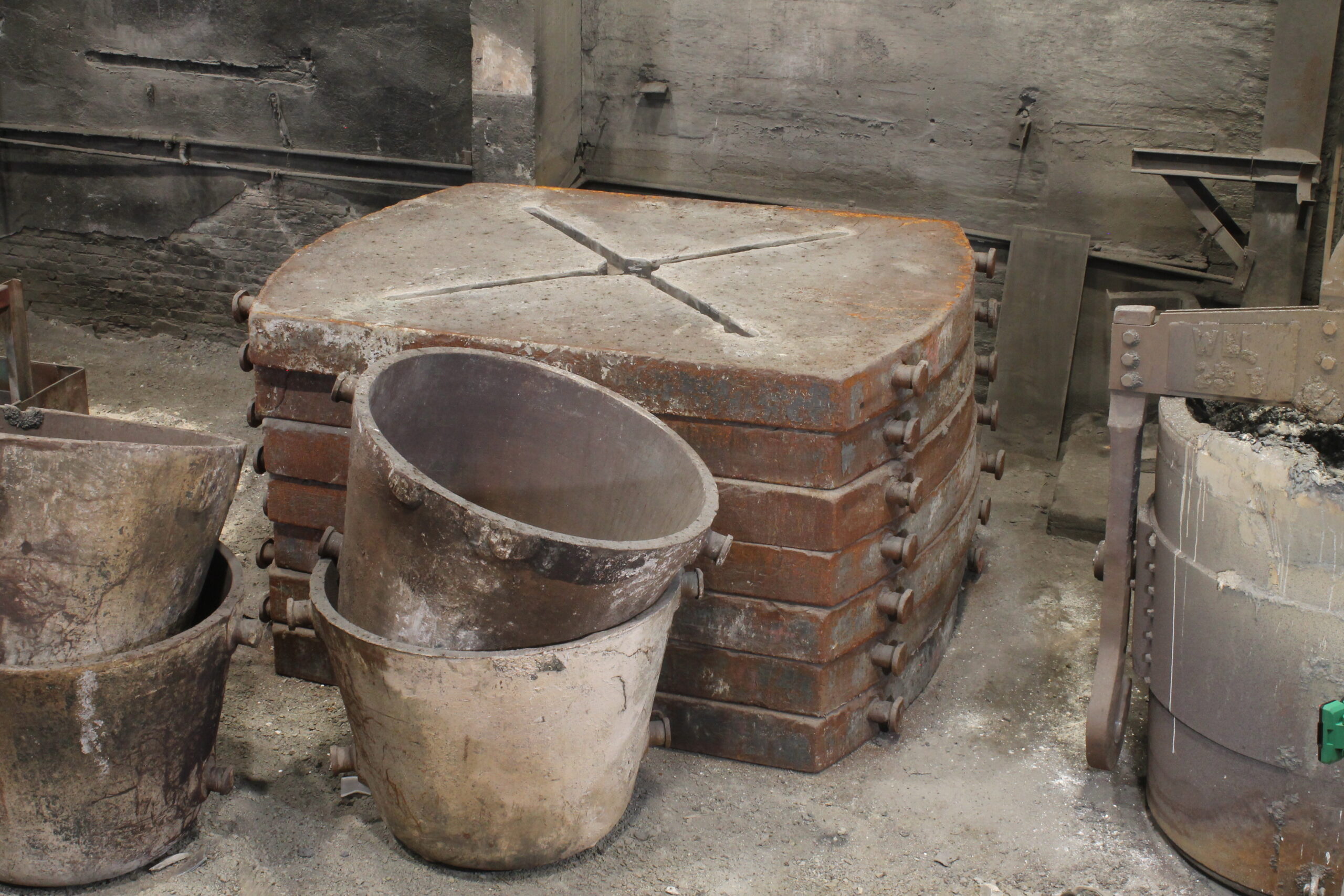

750kg TO 12000kg MOULDS FOR STEEL INGOT CASTING
-267 different moulds, mid-plates, em-cy buckets, slag buckets and Injectiontubes
-Originates from Jørpeland foundry in Norway
-Primarily KO-brand foundry tooling Bottom plates:
-Two, four and eight channel bottom plates
-Originates from Jørpeland foundry in Norway

-KO-brand foundry tooling Moulds & Bottom plates:
-1pc: 96cm 404LY – 12.000kg – LWH: 158x158x183cm
-17pcs: KO 750kg – LWH: 51x51x117cm
-12pcs: KO 1.200kg – LWH: 60x60x142cm
-17pcs: KO 2.700kg – LWH: 77x77x182cm
-10pcs: KO 3.400kg – LWH: 83x83x204cm
-6pcs: KO 4.500kg – LWH: 110x110x183cm
-2pcs: KO 6.500kg – LWH: 162x162x106cm
-11pcs round bottomplates, total weight: 42.900kg
-22pcs bottomplates, total weight: 306.480kg
Mid-plates:
-15pcs: KO 1100×300 – ODxH: 111x30cm
-2pcs: KO 1500×300 – ODxH: 150x30cm
-2pcs: KO 1500×400 – ODxH: 150x40cm
Injectiontubes:
-9pcs: Large – ODxH: 95x237cm
-4pcs: Small – ODxH: 95x184cm
-1pc: IG – ODxH: 65x265cm
Em-cy buckets:
-3pcs: LWH: 140x140x150cm Slag buckets
-24pcs slag buckets
Scrap containers
-100pcs scrapcontainers

AOD – ARGON OXYGEN DECARBONIZER

-Decarboniser for production of stainless steel
-Including phisical control interface, O2 & Argon valvecontrol system, Scetrolab spectrometer material analyzer and Spectro material
preperation grinding machine
-Revised remote control-interface; OS: Windows 7 or higher
-Software: Uvån Hagfors Teknologi AB
-Motorized tilt, fume extractor hood and moveable deck
-Including 1 additional vessel. Neseccary for
preliminary masonry

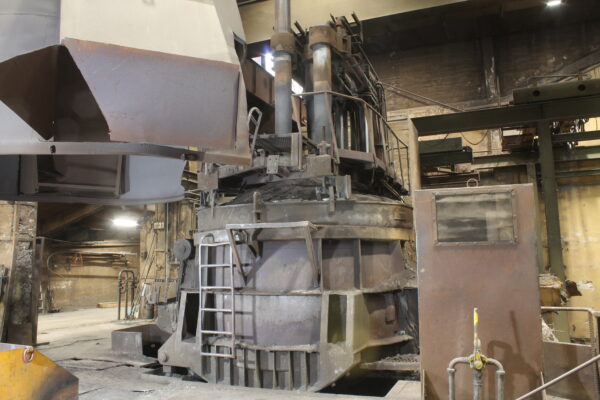

6 MEGAWATT ARC FURNACE
-Production year: 1962
-Make: Brown Boveri & Cie
-Transformer rating: 5100V @ 1000Kva – 3-Phase
-Capacity: 14-Ton’s
-Emulsjon-hydraulic actuated mechanics; Forward tilt, front hatch and lid with graphite electrodes
-Watercooled outershell
-Approx meassurements: 740x680x790cm

4 MEGAWATT ARC FURNACE
-Production year: Unknown
-Make: Brown Boveri & Cie
-Transformer rating: Unknown
-Capacity: 6-7 Ton’s
-Emulsjon-hydraulic actuated mechanics; Forward tilt, front hatch and lid with graphite electrodes
-Watercooled outershell
-Approx meassurements: Unknown

LOGISTICS:
The foundry is located near the coast (see screenshot from Google Maps) and can preferably be dismantled and transported using barges or similar.
The foundry has the expertise and personnel
available to assist with dismantling, relocation, and any reassembly if required
